Pillow Block Bearing Units

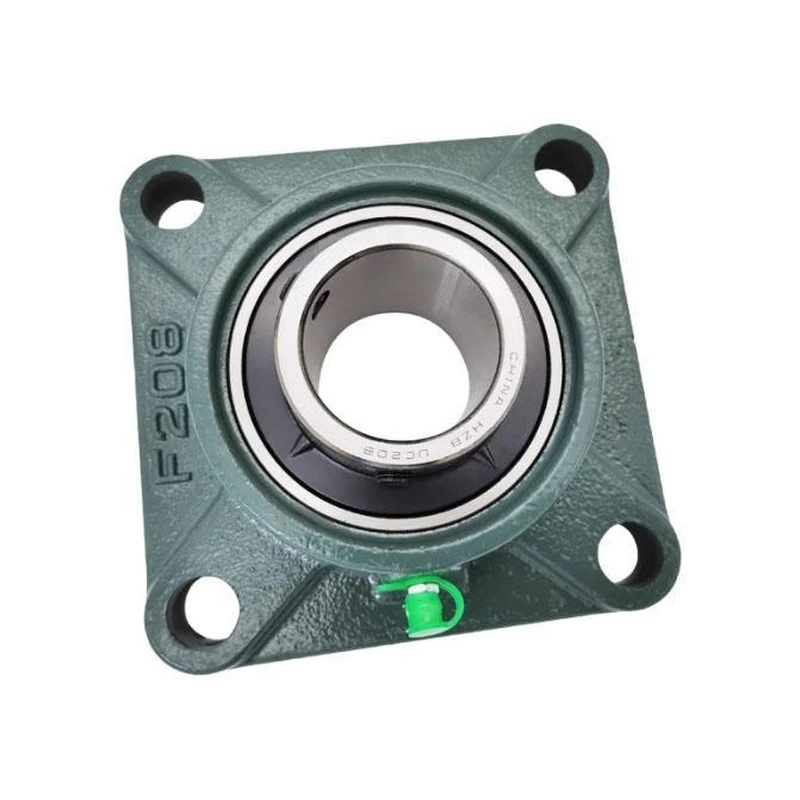

UCF four-bolt flanged unit with insert bearing
33 models, bore range 12 – 80 mm.
Product image
Product data
UCF
- Bore range
- 12 – 80 mm
- Housing
- HT200 grey cast iron
- Bearing
- GCr15 chrome steel
- Application
- Packaging machines, side-mounted conveyor equipment
Standard construction: set-screw locking, double rubber seal, ±2° self-aligning capability and a grease nipple for relubrication.
Need specifications or a quotation? WhatsApp +8617600510039 · E-mail us
Full model range
200 series — light duty, standard range
UCF201, UCF202, UCF203, UCF204, UCF205, UCF206, UCF207, UCF208, UCF209, UCF210, UCF211, UCF212, UCF213, UCF214, UCF215, UCF216
300 series — heavy duty, thicker section for higher loads
UCF305, UCF306, UCF307, UCF308, UCF309, UCF310, UCF311, UCF312, UCF313, UCF314, UCF315, UCF316
Special variants
Imperial bore models
UCF204-12, UCF205-16, UCF206-18, UCF207-20, UCF208-24
Flange types in this family
- UCF
- Square four-bolt flange, no locating spigot
- UCFC
- Round flange with locating spigot
- UCFL
- Oval two-bolt flange — slim and compact
- UCFA
- Oval flange with slotted holes — adjustable mounting position
- UCFB
- Round two-bolt flange — no spigot, lightweight
Need the SKF / FYH / NSK equivalent? See the model cross-reference
About this series
Square four-bolt flange units bolt to a vertical face, where the bearing must hang or mount against a wall.
