Pillow Block Bearing Units

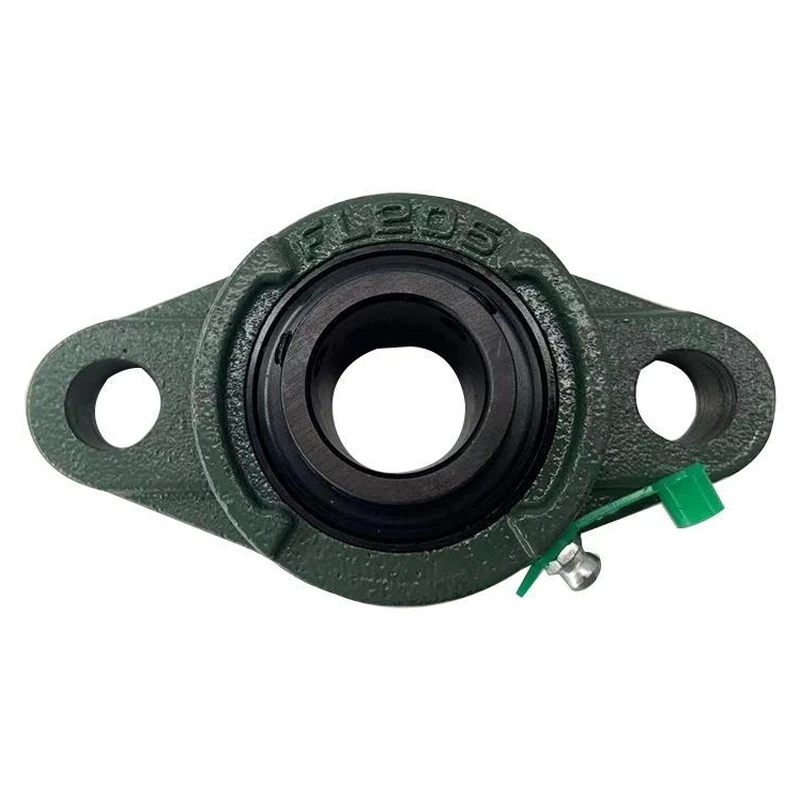

UCFL two-bolt flanged unit with insert bearing
33 models, bore range 12 – 80 mm.
Product image
Product data
UCFL
- Bore range
- 12 – 80 mm
- Housing
- HT200 grey cast iron
- Bearing
- GCr15 chrome steel
- Application
- Textile machinery, light conveyors, small farm equipment
Standard construction: set-screw locking, double rubber seal, ±2° self-aligning capability and a grease nipple for relubrication.
Need specifications or a quotation? WhatsApp +8617600510039 · E-mail us
Full model range
200 series — light duty, standard range
UCFL201, UCFL202, UCFL203, UCFL204, UCFL205, UCFL206, UCFL207, UCFL208, UCFL209, UCFL210, UCFL211, UCFL212, UCFL213, UCFL214, UCFL215, UCFL216
300 series — heavy duty, thicker section for higher loads
UCFL305, UCFL306, UCFL307, UCFL308, UCFL309, UCFL310, UCFL311, UCFL312, UCFL313, UCFL314, UCFL315, UCFL316
Special variants
Imperial bore models
UCFL204-12, UCFL205-16, UCFL206-18, UCFL207-20, UCFL208-24
Flange types in this family
- UCFL
- Oval two-bolt flange — slim and compact
- UCF
- Square four-bolt flange, no locating spigot
- UCFA
- Oval flange with slotted holes — adjustable mounting position
- UCFB
- Round two-bolt flange — no spigot, lightweight
Need the SKF / FYH / NSK equivalent? See the model cross-reference
About this series
Compact two-bolt oval flange units for narrow mounting surfaces and light-duty machinery.
