Pillow Block Bearing Units

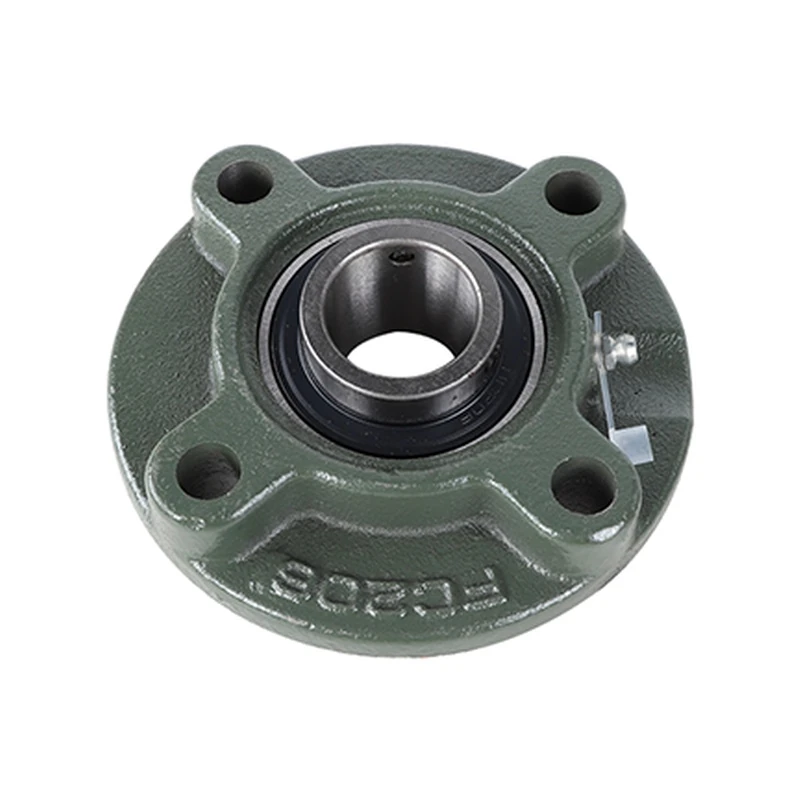

UCFC piloted round flanged unit with insert bearing
33 models, bore range 12 – 80 mm.
Product image
Product data
UCFC
- Bore range
- 12 – 80 mm
- Housing
- HT200 grey cast iron
- Bearing
- GCr15 chrome steel
- Application
- Pumps, reducers, precision machinery shells
Standard construction: set-screw locking, double rubber seal, ±2° self-aligning capability and a grease nipple for relubrication.
Need specifications or a quotation? WhatsApp +8617600510039 · E-mail us
Full model range
200 series — light duty, standard range
UCFC201, UCFC202, UCFC203, UCFC204, UCFC205, UCFC206, UCFC207, UCFC208, UCFC209, UCFC210, UCFC211, UCFC212, UCFC213, UCFC214, UCFC215, UCFC216
300 series — heavy duty, thicker section for higher loads
UCFC305, UCFC306, UCFC307, UCFC308, UCFC309, UCFC310, UCFC311, UCFC312, UCFC313, UCFC314, UCFC315, UCFC316
Special variants
Imperial bore models
UCFC204-12, UCFC205-16, UCFC206-18, UCFC207-20, UCFC208-24
Flange types in this family
- UCFC
- Round flange with locating spigot
- UCF
- Square four-bolt flange, no locating spigot
- UCFB
- Round two-bolt flange — no spigot, lightweight
Need the SKF / FYH / NSK equivalent? See the model cross-reference
About this series
Round flange units with a circular bolt pattern, used where a square flange does not fit the machine face.
